INLINE GROOVE NOTCH BONDING TOOL (1015/1016/2015/2016 STYLE)

1015/1016/2015/2016 Inline Groove Notch Autobonding Wire Wedge bonding tool

1015/1016/20115/2016 Inline Groove Notch 30° & 45°, U & V Groove Large Wire Notch Wedge Bonding Tools

The inline groove was one of the most widely used foot designs for large wire bonding. The bond deformation width is smaller than that seen with a concave foot design. The inline groove design was the first step away from the concave foot, and primarily utilizes a cutting tool for second bond termination.

Autobonding tools help guide the wire directly under the foot. This design is commonly used where notch and L-notch tools experience wire control problems where different bonding heights and extreme long wires are bonded.

1015/1016/2015/2016 Inline Groove Autobonding Notch Wire Wedge bonding tool Standard Size Chart

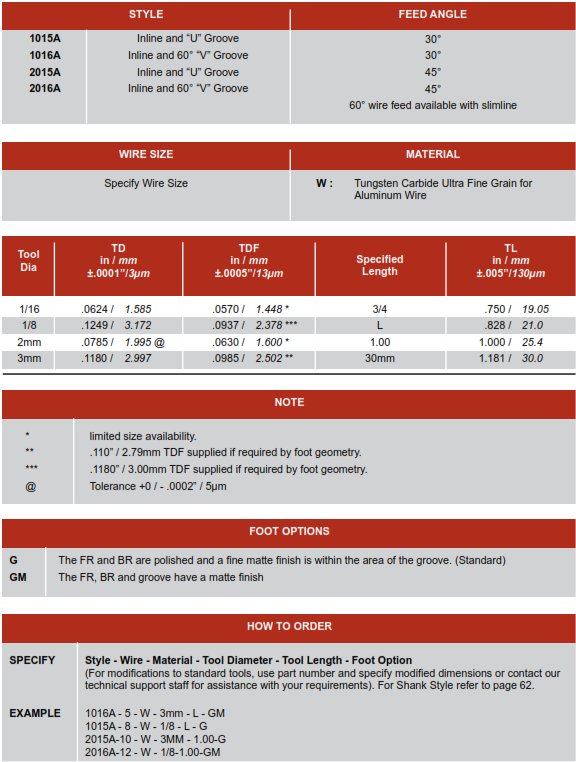

1015/1016/2015/2016 Inline Groove Autobonding Notch Wire Wedge bonding tool How to order and part options selection chart

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - 1015A Large Wire Inline U Groove Notch Bonding WedgePRICE QUOTE - email us at sales@epakelectronics.com
Part Number - 1016A Large Wire Inline V Groove Notch Bonding WedgePRICE QUOTE - email us at sales@epakelectronics.com
Part Number - 2015A Large Wire Inline U Groove Notch Bonding WedgePRICE QUOTE - email us at sales@epakelectronics.com
Part Number - 2016A Large Wire Inline V Groove Notch Bonding WedgePRICE QUOTE - email us at sales@epakelectronics.com

1015/1016/2015/2016 Inline Groove U & V Notch Autobonding Datasheet
SPT Wedge Shank Styles Datasheet
