STEEL AND TUNGSTEN CARBIDE EPOXY STAMPING TOOLS (SEST & WEST)
SEST: STEEL EPOXY STAMPING TOOLS
WEST: TUNGSTEN CARBIDE EPOXY STAMPING TOOLS
Metallic stamping tools are used for small to medium die sizes. The tip has a specific shape depending on the range of recommended die size and is adaptable to all shank types : DAUB TIP: for die size less than .012” / 0.30mm ROUND TIP: for die size less than .032” / 0.80mm RECTANGULAR TIP: for die size between .024” / 0.60mm and .040” / 1.00mm STAR TIP: for die size between .040” / 1.00mm and .235” / 6.00mm GRID TIP: for die size larger than .100” / 2.54mm FRAME TIP: for device size larger than .100” / 2.54mm FRAME-GRID TIP: for device size larger than .100” / 2.54mm The small stand off allows for consistent amount of epoxy to be picked up and transferred. Note: *Standard height is .005” / 0.127mm and limited to 50% of stand-off when shorter size of TL, TW or ØF is less than .030” / 0.80mm.

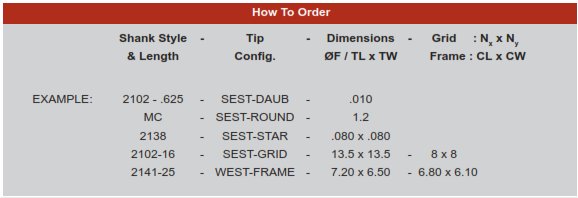

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE) Part Number - STEEL EPOXY STAMPING TOOLS (SEST)
Part Number - TUNGSTEN CARBIDE EPOXY STAMPING TOOLS (WSEST)
