Suction Cup Pickup Tools

The soft lips of the suction cup provide a gentle touch to the die surface while the flexible tip adapts to the substrate planar level. Large contact diameter extend the field of application of these pick-up to ols compared to the classical rubber tips.

SC: Suction Cup Pick-up Tools

Two material grades are available :
HSC: Conductive Silicone material for high temperature (200°C) utilization
SC: Static Dissipative non marking Nitrile material for low temperature (100°C) utilization

SPT SC and HSC Tool Dimension Information

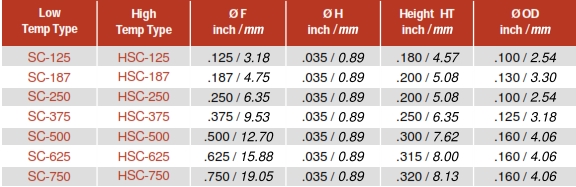

SPT SC and HSC Tool Size Chart

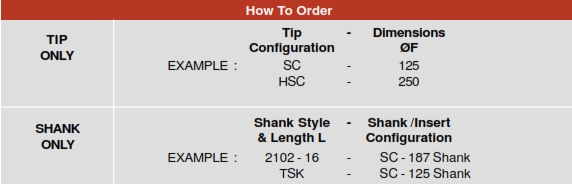

SPT SC Tools - How To Order

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - Suction Cup Pickup Tools (SC)PRICE QUOTE - email us at sales@epakelectronics.comSC Pick-up Tools Datasheet
