Anti-static Storage Cabinets

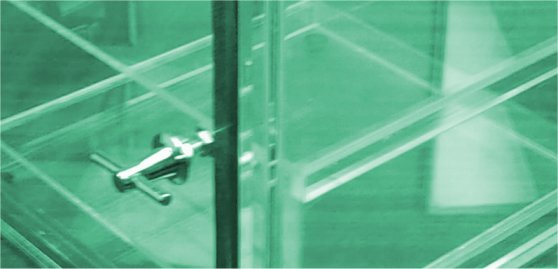

These cabinets have been designed for safe, dust free storage, they are constructed in either clear Perspex, stainless steel, tempered glass, or DC ESLON static dissipating plastic plate. These cabinets combine excellent all round visibility, strength and a high quality finish, with safe storage in dust free environments. These cabinets feature single, and multiple compartments with doors retained by quarter-turn chrome latches.

Closed cell PVC gaskets ensure an airtight seal. Shelves in acrylic or stainless steel, are equally spaced as standard, but can be supplied in alternative positions. These cabinets can be free-standing on any bench top or an optional metal stand finished in white epoxy can be supplied, with any of our cabinets. Non-slip rubber feet are a standard feature, which prevents movement, they also enable the smaller cabinets like 3500-01/02 to be stacked to form storage banks.

The cabinets are available in four standard sizes, but when customers require the cabinets to suit their individual application, special sizes and designs can be supplied to meet your needs.

Where a dry atmosphere is required, flow-meters for N2 or Dry Air are fitted and connected by tubing to each compartment. Exhaust ports are supplied as standard or, if required, non-return valves are available.

Quarantine or security requirements are met by the availability of chrome locks as options, these must be fitted at the factory.

Standard Cabinets (3500 Series)

Standard 3500 cabinets are 10mm and 6mm cast acrylic/perspex

3500-1

3500-2

3500-3

3500-4

Part Number and Description:

3500-01 1 door, 1 shelf. size: 300mm (h) x 300mm (w) x 300mm (d)

3500-02 2 doors, 2 compartments, 1 shelf each compartment. size: 600mm (h) x 300mm (w) x 300mm (d)

3500-03 2 doors, 2 compartments, 1 shelf each compartment. size: 600mm (h) x 400mm (w) x 400mm (d)

3500-04 3 doors, 3 compartments, 1 shelf each compartment. size: 700mm (h) x 360mm (w) x 360mm (d)

Anti-static Standard Cabinets (3600 Series)

3600 cabinets are 6mm Esion DC plate, clear dissipative PVC sheet

Part Number and Description:

3600-01 1 door, 1 shelf. size: 300mm (h) x 300mm (w) x 300mm (d)

3600-02 2 doors, 2 compartments, 1 shelf each compartment. size: 600mm (h) x 300mm (w) x 300mm (d)

3600-03 2 doors, 2 compartments, 1 shelf each compartment. size: 600mm (h) x 400mm (w) x 400mm (d)

3600-04 3 doors, 3 compartments, 1 shelf each compartment. size: 700mm (h) x 360mm (w) x 360mm (d)

Custom Cabinets:

Custom Dry / Nitrogen Storage Cabinet With Baskets

Special sizes and designs can be supplied upon request, please contact us to discuss your requirements.

Accessories:

Flow-meters 0.5-3 Litres per minute
Stainless Steel Shelves
Non-return Valves
Anti Static Earthing
Additional Perspex Shelves
Chrome Door Locks
Stands in Stainless Steel or White Epoxy

Cabinets are especially useful for the safe storage of:

Semiconductor Wafers
Integrated Circuits
Photonic Devices & Substrates
Fibre Optical Devices
Hybrid Circuits
Waffle Packs
Medical & Bio-Medical products & Devices
Pharmaceutical Products
Surface Mount components & Assemblies.
CCD Arrays

Static Sensitive Devices can be safely stored in Stainless Steel or Dissipating PVC cabinets. In these cases, or when Stainless Steel shelves are used, either conductive metal strips and/or a ground cord for connection to earth are provided.

Custom stainless Steel Cabinet With Stand

ORDERING INFORMATION

Standard Acylic/Perspex Cabiniets:
Part Number - 3500-01 Nitrogen / Dry Storage Cabinet 1 door, 1 shelf.

PRICE QUOTE - email us at sales@epakelectronics.com

Part Number - 3500-02 Nitrogen / Dry Storage Cabinet 2 doors, 2 compartments.

Part Number - 3500-03 Nitrogen / Dry Storage Cabinet 2 doors, 2 compartments.

Part Number - 3500-04 Nitrogen / Dry Storage Cabinet 3 doors, 3 compartments.

Part Number - 3500-CUSTOM Nitrogen / Dry Storage Cabinet - Please specify requirements

Standard Esion DC Plate Cabiniets:
ORDERING INFORMATION

Part Number - 3600-01 Anti-static Cabinet 1 door, 1 shelf.

Part Number - 3600-02 Anti-static Cabinet 2 doors, 2 compartments.

Part Number - 3600-03 Anti-static Cabinet 2 doors, 2 compartments.

Part Number - 3600-04 Anti-static Cabinet 3 doors, 3 compartments.

Part Number - 3600-CUSTOM Custom Anti-static Cabinet - Please specify requirements

If you can't find what you are looking for, please do not hesitate to contact us at sales@epakelectronics.com
